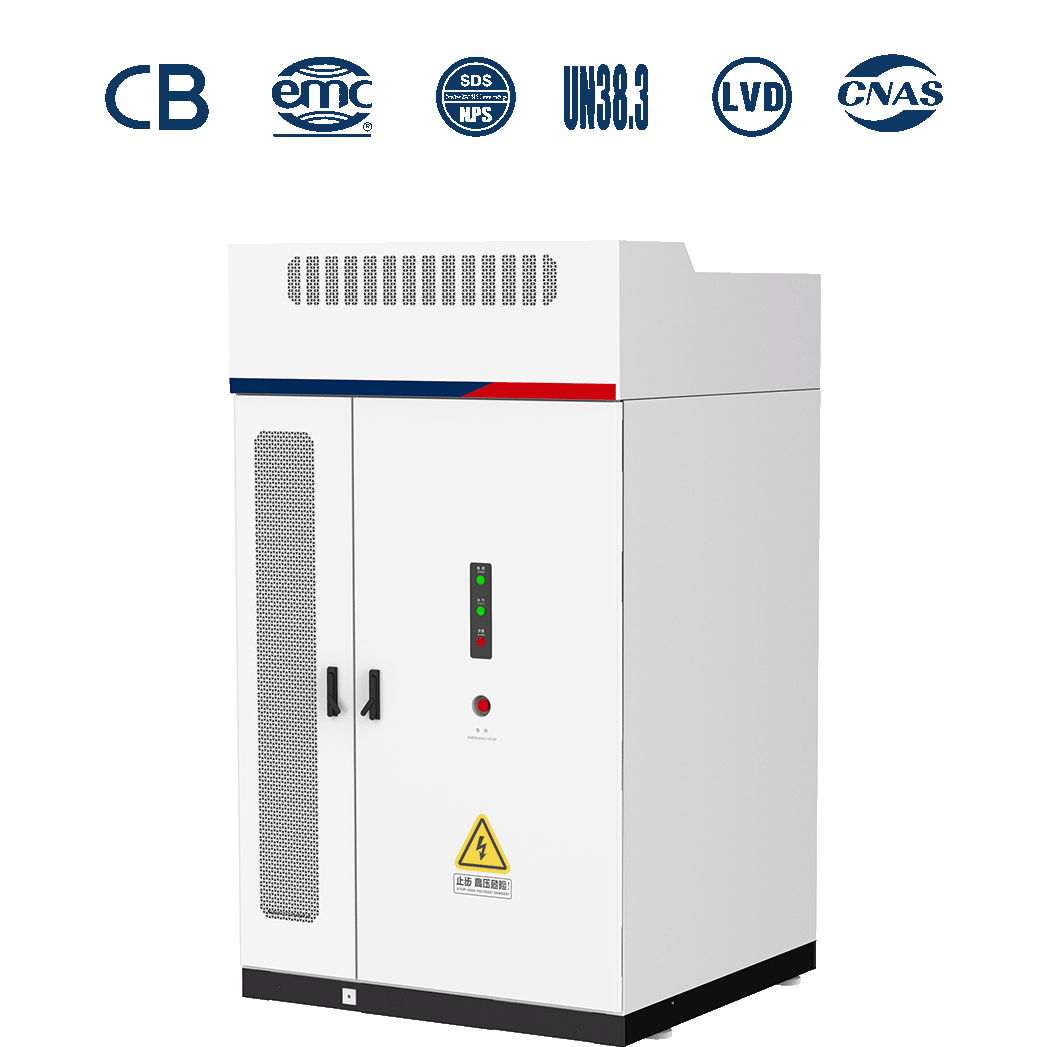

130kW/261kWh C&I Immersion Liquid-cooling ESS
  • Advanced Immersion Liquid Cooling
  • Extended Battery Lifespan
  • Robust Environmental Adaptability
  • Easy Installation and Maintenance
The 130kW/261 kWh C&I ESS adopts advanced immersion liquid-cooling technology, fully submerging the batteries in thermally conductive insulating liquid, providing an extremely safe energy storage solution and effectively addressing the global battery safety challenge. With efficient temperature control, the system's cycle life is extended by over 10%, ensuring reliable performance in extreme conditions such as high or low temperatures and high humidity, making it particularly adaptable for applications that require high safety standards.
Technical Parameter
AC Input/Output
  • Rated Power (kW)
    130
  • AC Maximum Current (A)
    197
  • Rated Voltage AC
    3/N/PE; 220/380 3/N/PE; 230/400
  • Rated Frequency (Hz)
    50/60
  • Power Factor
    -1~+1
  • THDi (%)
    <3
  • Off-grid
    Support
Battery Parameters
  • Rated Capacity (kWh)
    261
  • DC Maximum Current (A)
    185
  • Battery Type (V/Ah)
    LFP 3.2/314
  • Battery Voltage Range (V)
    700~950
  • Rated Voltage DC (V)
    832
  • Battery Module (kW/N)
    52/166.4
  • Number of Battery Module
    5
  • Cycle Life
    ≥6000 times(25°C±5°C/100% DOD/80% SOE)
  • BMS Balancing Method
    Active battery cell balancing
General Data
  • Dimension WxDxH (mm)
    1450x1400x2500
  • Weight (kg)
    3500
  • Operating Temperature Range (°C)
    -20~+50 (derating > 45)
  • Relative Humidity (%)
    0~95
  • Altitude (m)
    ≤2000
  • Protection Level
    IP55
  • Cooling Method
    Air cooling (PCS); Immersion Liquid-cooling (Battery)
  • Inverter Topology
    Non-isolated
