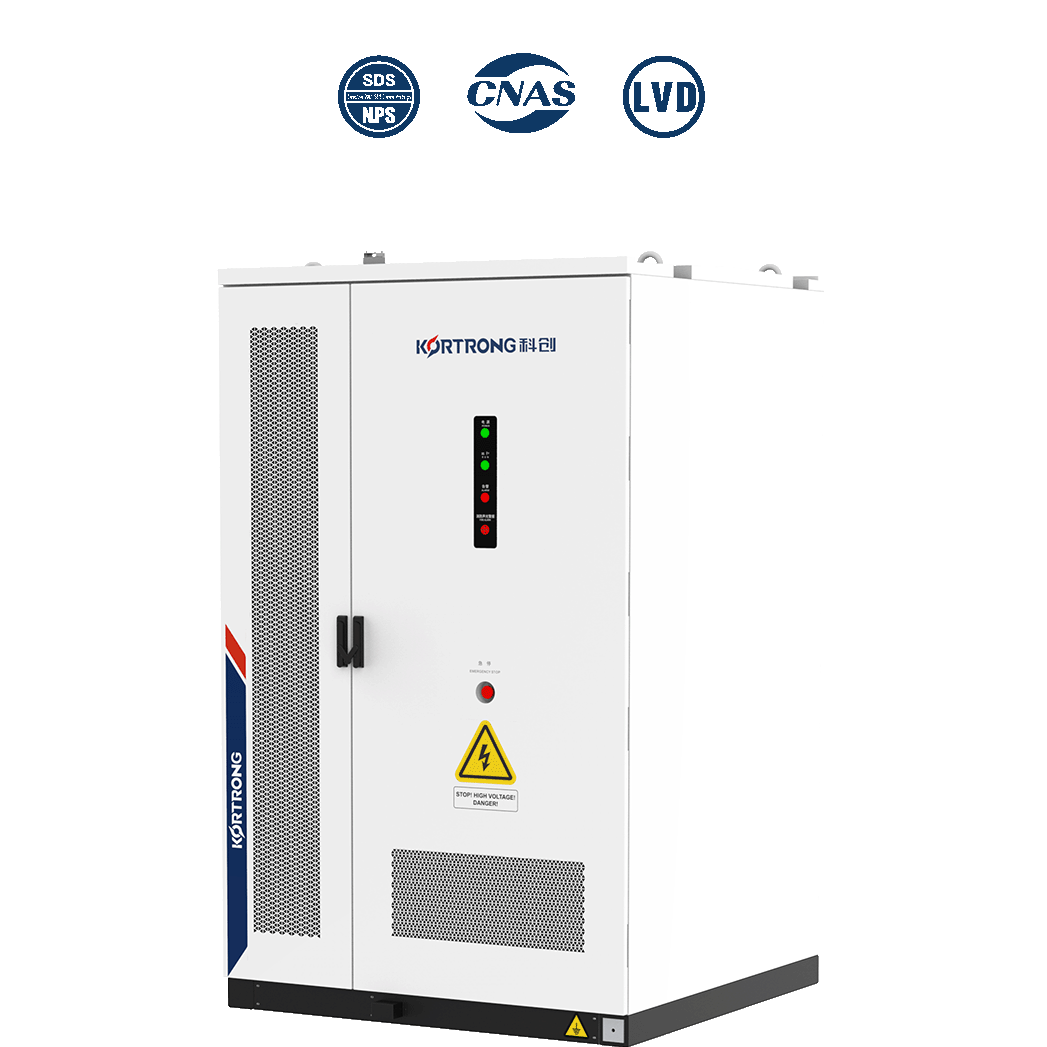

130kW/261kWh C&I Cold Plate Liquid-cooling ESS

All-in-One Integration
Enhanced Battery Lifespan
Scalable Design
Fast Setup and Reliable Operation

The 130kW/261 kWh Cold Plate Liquid-cooling C&I ESS integrates key components such as the energy storage converter, batteries, BMS, EMS, thermal management, power distribution, and fire protection into a compact, easy installation and efficient O&M. Meanwhile, the safety design of the system ensures a better battery performance and longer service life. Multiple sets of cabinets can be directly connected in parallel to realize energy storage system expansion.

Technical Parameter

AC Input/Output

Rated Power (kW)
130
AC Maximum Current (A)
197
Rated Voltage AC
3/N/PE; 220/380 3/N/PE; 230/400
Rated Frequency (Hz)
50/60
Power Factor
-1~+1
THDi (%)
<3
Off-grid
Support

Battery Parameters

Rated Capacity (kWh)
261
DC Maximum Current (A)
185
Battery Type (V/Ah)
LFP 3.2/314
Battery Voltage Range (V)
700~950
Battery Module (kWhN)
52/166.4
Number of Battery Module
5
Cycle Life
≥6000 times(25°C士5°C/100% DOD/80% SOE)
BMS Balancing Method
Active battery cell balancing

General Data

Dimension WxDxH (mm)
1450x1400x2350
Weight (kg)
2800
Operating Temperature Range (°C)
-20~+50 (derating > 45)
Relative Humidity (%)
0~95
Altitude (m)
≤2000
Protection Level
IP55
Cooling Method
Air cooling (PCS); Liquid-cooling (Battery)
Inverter Topology
Non-isolated
