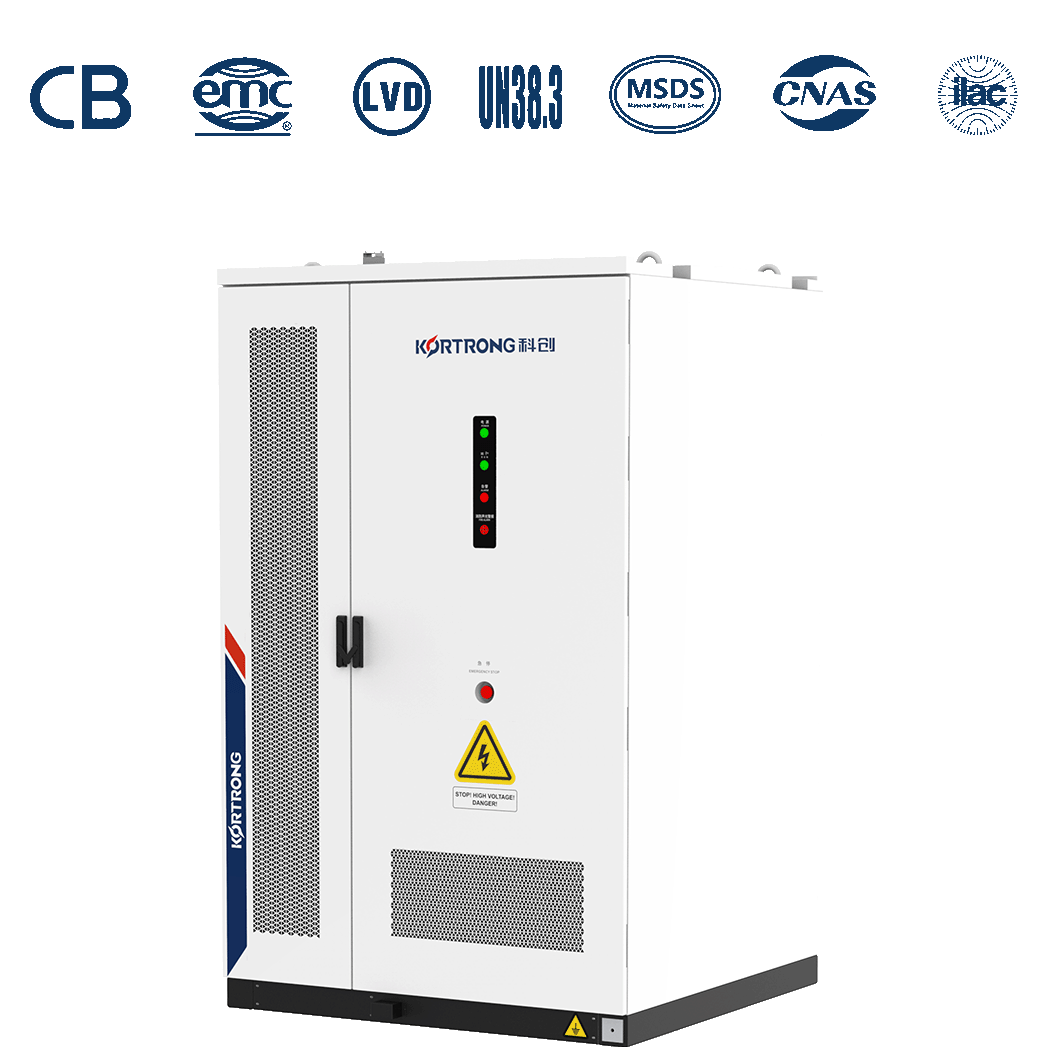

60kW/208kWh Liquid Cooling All-in-one Hybrid ESS

Seamless Power Transitions
High Capacity and Scalability
Reliable Backup Power
Versatile Applications

Kortrong's latest C&I Hybrid ESS is designed for effortless transport and maintenance, featuring a hybrid inverter compatible with both solar photovoltaic and diesel generator inputs, which enables seamless transitions between on-grid and off-grid states, rendering it a perfect choice for scenarios requiring reliable power backup, particularly in areas with limited grid availability.

Technical Parameter

PV Input

Max. PV Input
90kWp
MPPT Voltage Range
180V ~ 900V
Max. Input Current
4x30
No. of MPP Trackers
4 / 2

Battery Parameters

Battery Type (V/Ah)
LFP 3.2/314
Battery Voltage Range (V)
DC 200~850
Battery Module (kWhN)
52/166.4
Number of Battery Module
4
Battery Capacity (kWh)
208
Max. Charge/Discharge Current (A)
100/100
Cycle Lifespan
≥8000

AC Input/Output

Rated Power (kW)
60
Rated Apparent Power to Grid (kVA)
66
Rated Voltage (V)
3/N/PE; 220/380 3/N/PE; 230/400
Rated Frequency (Hz)
50/60
Rated Current to Grid (A)
87
Power Factor
-1~+1
THDi (%)
<3

EPS Output

Rated Power (kW)
60
Rated Apparent Power (kVA)
66
Rated Voltage (V)
3/N/PE; 220/380 3/N/PE; 230/400
Rated Frequency (Hz)
50/60
Rated Current to Grid (A)
104
THDv (%)
<3
Switch Time (ms)
<20

DG Input

Rated Power (kW)
60
Rated Apparent Power (kVA)
66
Rated Voltage (V)
3/N/PE; 220/380 3/N/PE; 230/400
Rated Frequency (Hz)
50/60

Efficiency

PV Max. Efficiency (%)
98.5
PV Europe Efficiency (%)
97.5

General Data

Dimension WxDxH (mm)
1450x1400x2200
Weight (kg)
2400
Operating Temperature Range (°C)
-20~+50 (derating > 45)
Relative Humidity (%)
0~95
Altitude
4000m (>2000m derating)
Ingress Protection
IP54
Cooling Method
Air cooling (PCS); Liquid-cooling (Battery)
Diesel Generators
Support
Certifications and Compliance
IEC 62619, IEC 62477, IEC 61000, IEC 62109 EN 50549-1, UL 1973, UL 9540A, UN38.3
